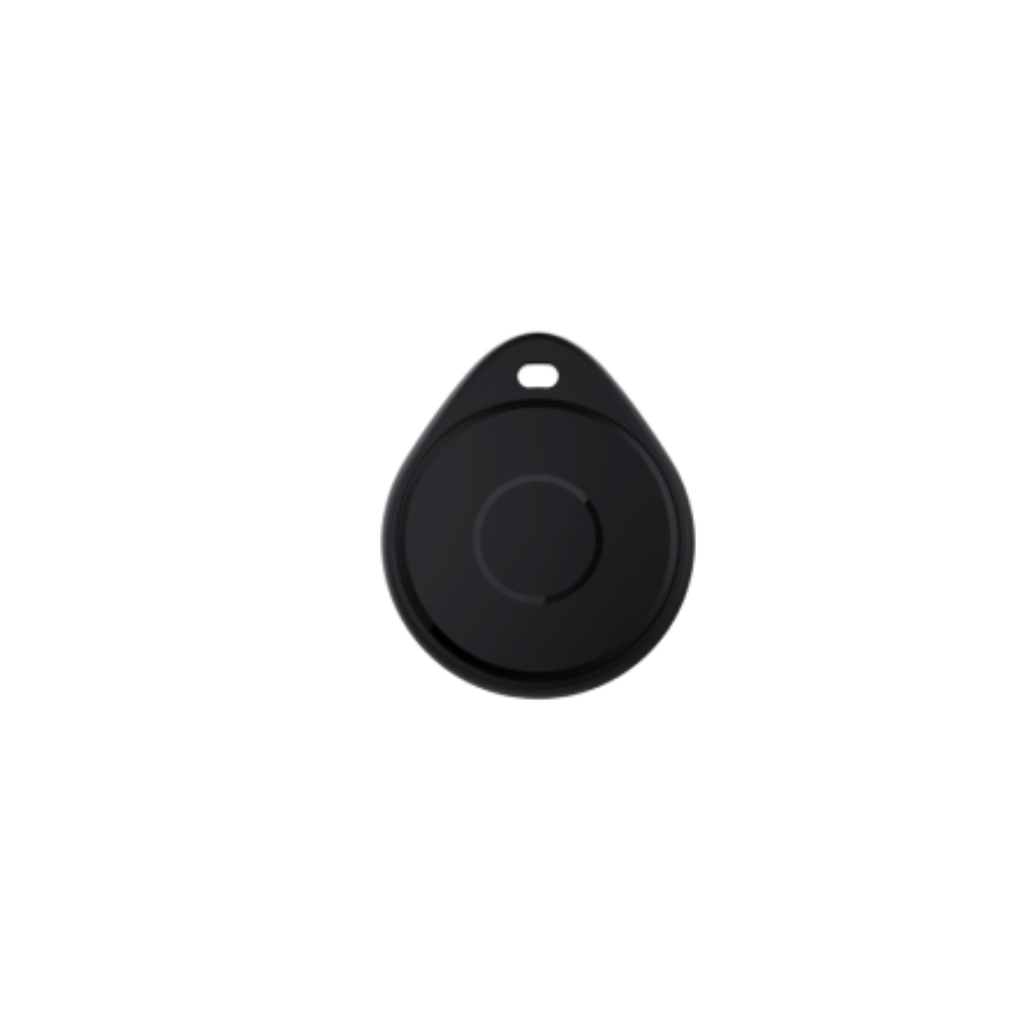

Bluetooth Beacon DSC Ver 2.0
The Bluetooth Beacon DSC Ver 2.0 is compatible with Bluetooth® 5.1 standard and it is designed to full fill all requirements for people flow management, secure access control and personnel tracking use cases. Thanks to its ultra-low power consumption, the beacon guaranties un-surpassed battery lifetime and on top of that its CR2032 battery can be replaced. Its high precision accelerometer sensor permits to detect most of movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Highlights
- - Nordic nRF52811 SoC (Hardware is compatible with Bluetooth 5.1)
- - Integrated 3-axis accelerometer sensor and RFID tag
- - Accelerometer sensor for motion detection can identify whether the Beacon is moving
- - Smartphone app (iOS & Android, and provide SDK) easily configures all parameters
Technical Specifications
- * Dimensions - 48.9mm x 41.7mm x 12mm (1.93" x 1.64" x 0.47")
- * Bluetooth - Bluetooth 4.2 (hardware compatible with Bluetooth 5.1)
- * Range - Up to 150 meters (open area)
- * Waterproof - IP67
- * Sensor - 3-axis accelerometer & RFID (optional)
- Hardware Specifications
- Powered by Nordic nRF52811 SoC with PCB onboard antenna. Features a mechanical button for user interaction and single red LED for status indication. Built with durable ABS+PC & TPU materials in black color, supporting multiple installation options including wrist wear, keychain, hang, and neck chain configurations.
- Environmental Resistance
- Operates reliably in temperatures from -20°C to +60°C with storage capability from -20°C to +70°C (without battery) or 10°C to +25°C (with battery). Handles humidity levels from 0% to 95% (non-condensing) and features IP67 waterproof rating for use in challenging environments.
- Advanced Sensing
- Optional Mifare Classic 1k EV1 RFID integration combined with high-precision 3-axis accelerometer sensor. The accelerometer detects movements, vibrations, shocks, and specific fall events with configurable parameters to adjust sensitivity based on application requirements.
